Concurrent Compilation Test

Introduction: When building software with the make tool, one of the options is the -jX option. This option allows you to specify the number of concurrent jobs to execute while building. The compilation time can be greatly reduced through the proper use of this option, especially with the abundance of multi-core processors commonly available, but what is the optimal number of concurrent jobs to run? Many people suggest using one more than the number of cores in your system, but is this really the best choice?

Experiment Setup: To try and measure the best -jX setting to use, we will perform a controlled, repeated compilation of a large software package on a handful of different machines, timing the real-world time for each test run. The machines used are all linux machines that I have access to, such as my work desktop or public machines at the University of Minnesota. All the machines had no other users than myself running during the tests. For a large compilation, I used the stock linux kernel version 2.6.26, and went through make oldconfig and answered with the default for all config questions. I then created a .tar.gz file of this directory, which was freshly extracted for each trial. I wrote a small python script to manage the execution of the test trials:

import time, os
def doTest(command):
    start = int(time.time() * 1000)
    os.system(command)
    end = int(time.time() * 1000)
    return end - start

times = {} # lookup on j to get list of times
for jay in ('1', '2', '3', '4', '5', '10', '15'):
    times[jay] = []

x = 1

numTrials = 5

for round in range(0,numTrials):
    for jay in ('1', '2', '3', '4', '5', '10', '15'):
        os.system("tar xzf test.tar.gz")
        os.chdir("test")
        cmd = "make -j" + jay
        print cmd

        t = doTest(cmd)

        times[jay].append(t)
        print "round", round, ", jay", jay, ", time:", t
        os.chdir("../")
        os.system("rm -rf test")
        logfile = open("logfile.txt", "a")
        logfile.write("trial " + str(round) + ", -j" + jay + "\t" + str(t) + "\n")
        logfile.close()


print "Final Results:"
for jay in times:
    print jay, times[jay]

For each machine tested, 5 trials were performed, and each round consisted of testing each of -j1, -j2, -j3, -j4, -j5, -j10, -j15 on a freshly-extracted kernel source tarball. Times are given in seconds. Click on the processor type to jump down to the detailed results for that machine.

Processor TypeClock Speed (GHz)Total CoresRAM (GB)
Intel Core 2 Duo2.6624
Intel Pentium 4 HT2.8021
AMD Athlon 642.4011
AMD Phenom 96002.3044


Overall Results

Here I have plotted the relative build times for each machine on the same plot. You can really see the difference between a single, dual, and quad-core processor:

Overall processor comparison


Detailed Results

Intel Core 2 Duo 2.66 GHz - 4 GB Ram

J-value Ratio Mean Trial 1 Trial 2 Trial 3 Trial 4 Trial 5
1 1.000 1571.78 1563.55 1566.71 1573.13 1588.73 1566.76
2 0.590 927.23 934.04 928.42 930.93 932.28 910.51
3 0.571 898.05 876.78 886.85 895.93 899.50 931.41
4 0.562 882.63 876.05 882.28 879.75 877.92 897.07
5 0.567 890.84 876.40 891.63 894.12 908.87 883.18
10 0.564 886.21 877.78 877.78 889.93 881.38 884.69
15 0.563 884.25 889.44 879.82 875.16 894.38 882.43

Intel Core 2 Duo 2.66 GHz - 4 GB Ram

Intel Pentium 4 HT 2.8 GHz - 1 GB Ram

J-value Ratio Mean Trial 1 Trial 2 Trial 3 Trial 4 Trial 5
1 1.000 1951.20 1448.32 1430.30 1464.20 1455.47 1442.27
2 0.612 1194.54 1195.88 1195.81 1201.96 1193.21 1185.84
3 0.594 1158.28 1164.67 1175.82 1159.54 1146.35 1145.04
4 0.579 1130.43 1138.71 1122.99 1149.40 1105.01 1136.02
5 0.586 1143.74 1129.01 1121.67 1118.04 1112.10 1237.91
10 0.563 1097.62 1089.20 1097.69 1108.96 1092.51 1099.77
15 0.555 1083.38 1093.31 1082.10 1103.21 1076.49 1061.80

Intel P4 HT 2.8 GHz - 1 GB RAM

AMD Athlon 64 2.4 GHz - 1 GB Ram

J-value Ratio Mean Trial 1 Trial 2 Trial 3 Trial 4 Trial 5
1 1.000 2373.06 2343.05 2392.02 2370.22 2382.22 2377.78
2 1.000 2373.15 2347.67 2394.21 2376.37 2374.41 2373.11
3 1.015 2409.76 2346.25 2388.86 2391.08 2391.10 2531.51
4 1.022 2424.66 2370.27 2422.24 2391.12 2394.57 2545.08
5 1.020 2420.12 2374.85 2341.87 2418.54 2410.81 2464.54
10 1.048 2487.96 2631.05 2452.99 2534.49 2425.15 2396.14
15 1.033 2450.99 2458.87 2461.69 2470.71 2464.98 2398.69

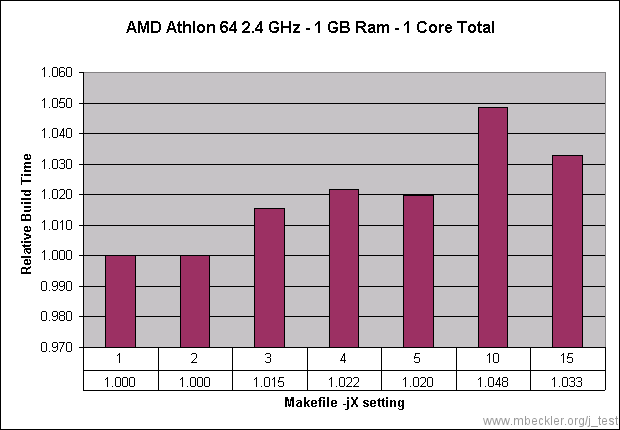

AMD Athlon 64 2.4 GHz - 1 GB RAM

AMD Phenom 9600 Quad-Core 2.3 GHz - 4 GB Ram

J-value Ratio Mean Trial 1 Trial 2 Trial 3 Trial 4 Trial 5
1 1.000 2334.28 2324.32 2332.98 2329.27 2333.37 2351.47
2 0.523 1219.84 1218.67 1222.81 1217.27 1223.58 1216.85
3 0.378 883.32 880.72 885.88 881.46 888.82 879.70
4 0.320 747.70 742.92 749.22 754.37 742.08 749.89
5 0.304 708.56 707.91 704.23 704.69 711.56 714.39
6 0.300 699.42 694.91 695.51 716.76 695.57 694.35
7 0.296 691.91 696.52 692.04 693.56 690.13 687.31
8 0.296 691.22 691.63 688.94 690.94 691.47 693.15
9 0.299 698.70 685.88 707.08 713.69 693.01 693.85
10 0.294 686.88 684.27 685.17 684.08 690.92 689.97
11 0.297 694.00 694.97 694.70 690.69 697.35 692.31
12 0.296 690.55 692.49 691.70 688.47 695.27 684.84
13 0.297 692.28 690.92 690.43 691.43 697.45 691.18
14 0.298 694.87 690.86 697.26 695.00 698.22 692.99
15 0.297 692.34 691.21 693.13 692.98 692.50 691.89
16 0.299 697.48 700.81 699.70 699.88 692.26 694.74
17 0.298 696.66 693.57 696.44 695.61 700.75 696.96
18 0.300 699.83 703.93 700.16 695.62 698.61 700.85
19 0.299 696.93 696.49 697.09 693.98 697.44 699.63
20 0.299 698.11 697.89 703.05 699.34 696.30 693.95
50 0.307 715.58 731.12 727.75 704.66 706.27 713.12
100 0.325 758.86 763.61 754.51 759.11 755.39 761.70

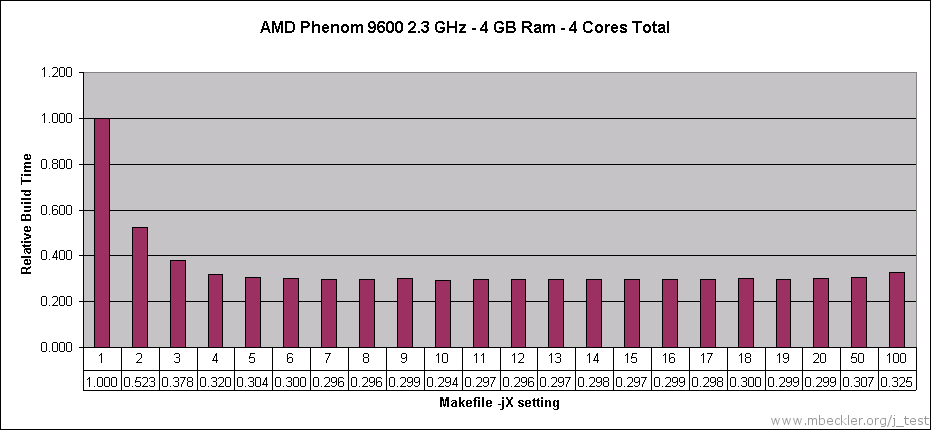

AMD Phenom 9600 Quad-Core 2.3 GHz - 4 GB RAM

Conclusions

It appears that the N+1 guideline isn't really that important. For single core processors, all j-values seem to work just as well, and for multi-core processors, there is no significant difference in compile time between N and N+1.

Comments? Suggestions? Dissenting opinions? Email Me
